120gsm 15k Spread Tow 20mm Tape Carbon Fibre



Description

Hypetex 120gsm is a combination of 110gsm spread-tow carbon fibre substrate and Hypetex colouring technology. Manufactured using a special ‘spreading’ technology to make the individual tows of carbon fibre very flat and wide. The result is a fabric that is smoother and flatter than a conventional woven cloth with less crimp, providing marginal stiffness advantages.

Material

Material(s) Carbon
Fibre(s) TR50S
Number of Filaments 15K
Stabilising Field 10gsm

Construction

Total weight 120+5% gsm
Fibre orientation 0° / 90° (BT)
Warp 55gsm
Weft 55gsm

Benefits

• Outstanding flat and smooth surface finish
• Straighter fibre with reduced crimp optimise
• Ideal for prepreg and infusion processes
• Ultra light and thin ply thickness for reduced weights
.

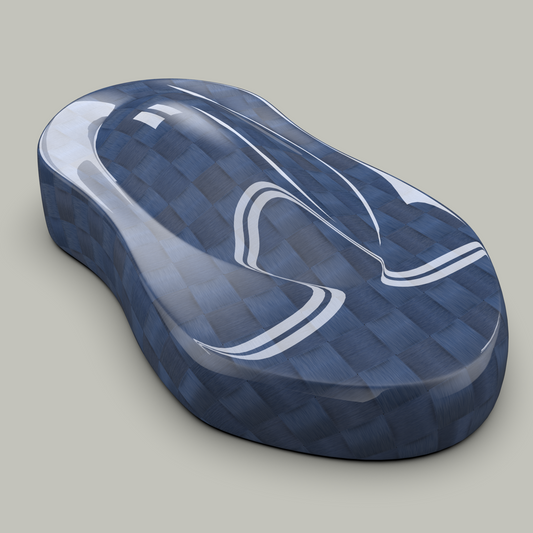

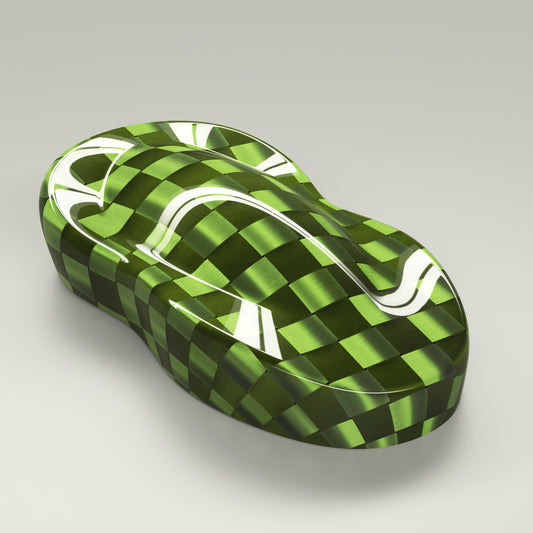

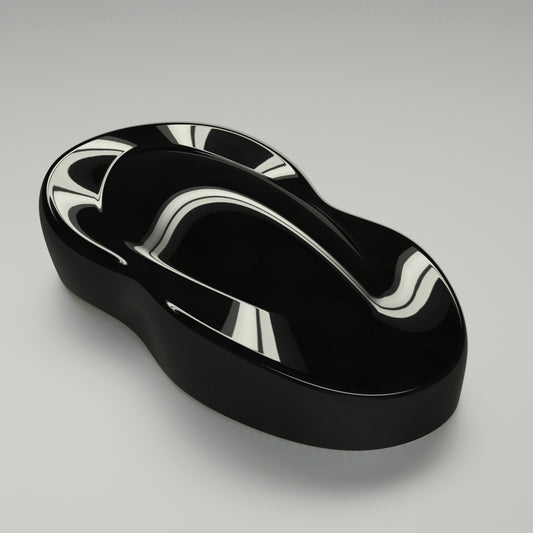

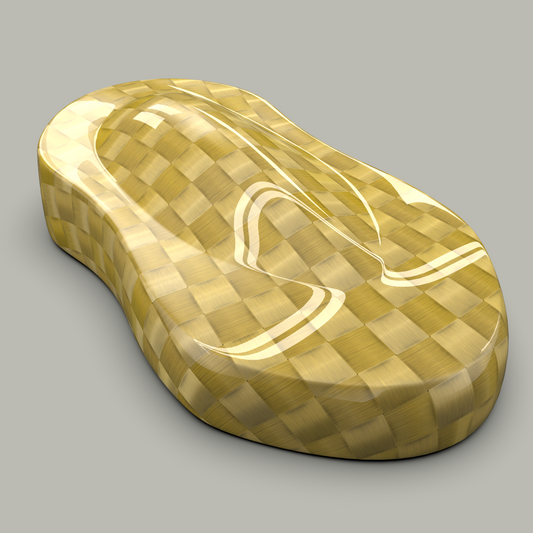

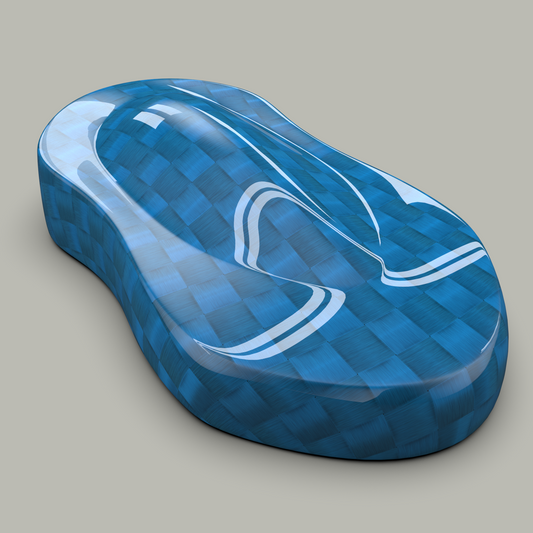

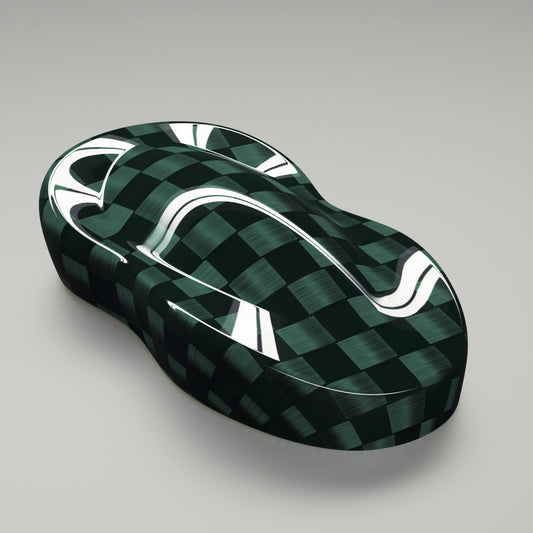

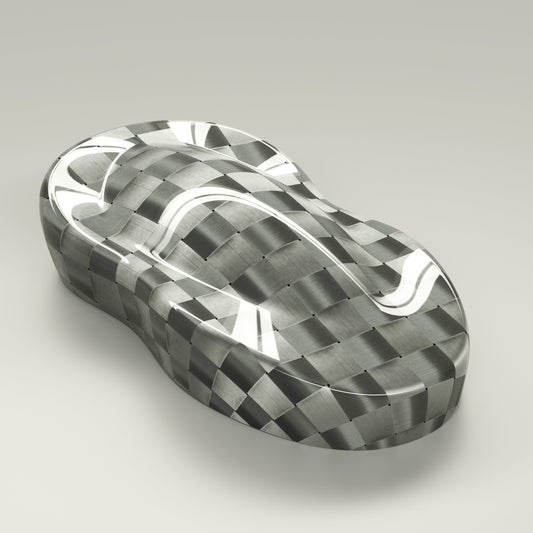

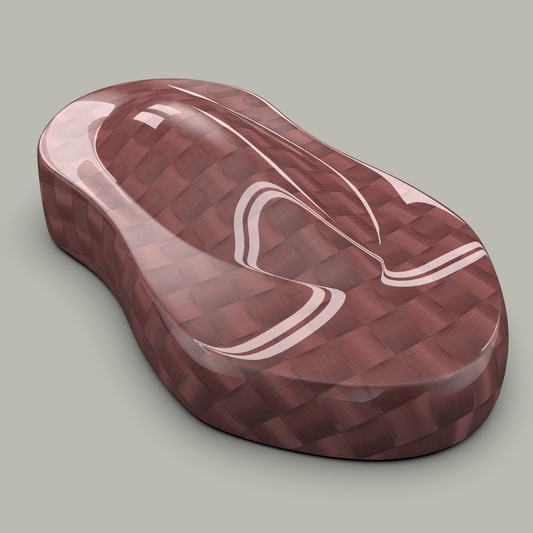

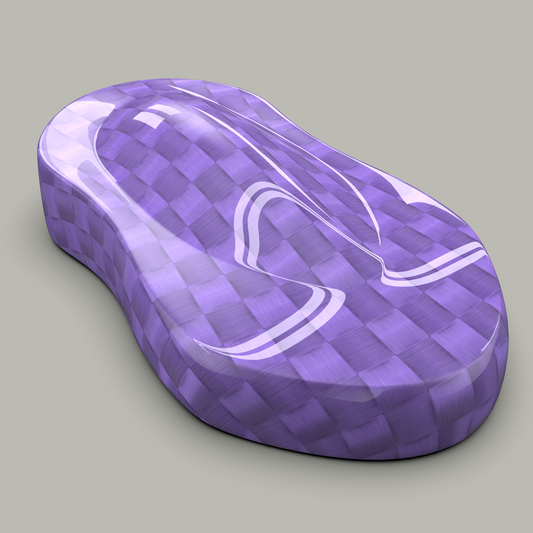

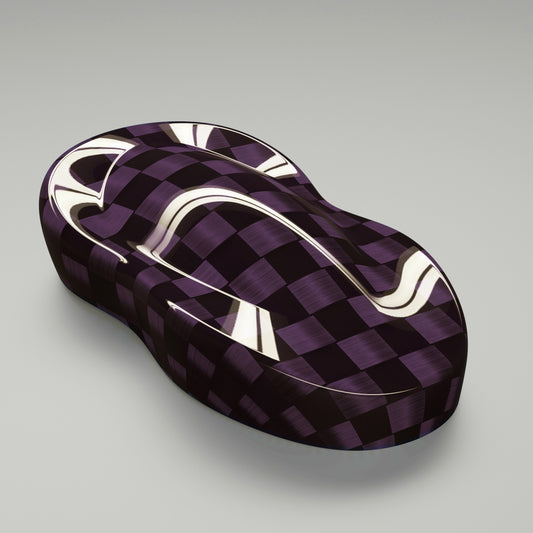

Please note that the colour displayed on your screen may differ from the actual colour due to variations in display capabilities. Every effort has been made to accurately represent the colour, but we cannot guarantee an exact match. To ensure the most accurate colour representation, we recommend referring to the Pantone® colour reference.
