220GSM / Plain Weave / FT300B 3K 1000mm / 1250mm

Description

220gsm is a 200gsm plain weave carbon that looks symmetrical with a small checkerboard style appearance. In this weave the tows are woven in an over/under pattern. The short space between interlaces give the plain weave a high level of stability.

Base Material

Base Material: Carbon Fibre
Fibre Type: High Strength (HS)
Filament Count: 3K

Fabric construction

Total Weight: 220 gsm ±3%
Fibre Orientation: 0°/90° (Balanced Tape)
Warp Density: 5.5 ends/cm
Weft Density: 5.5 ends/cm
Weave Pattern: Plain

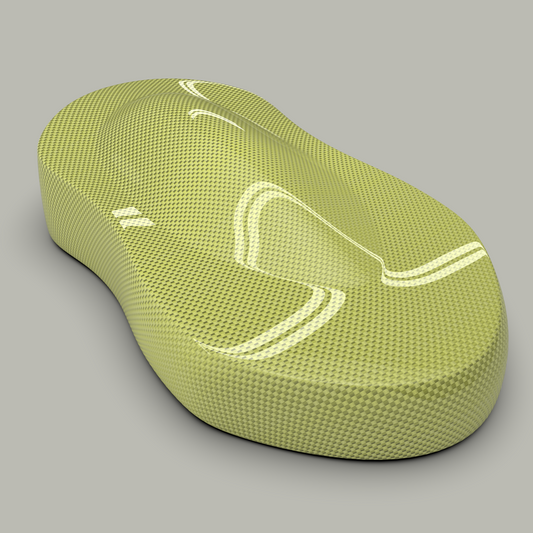

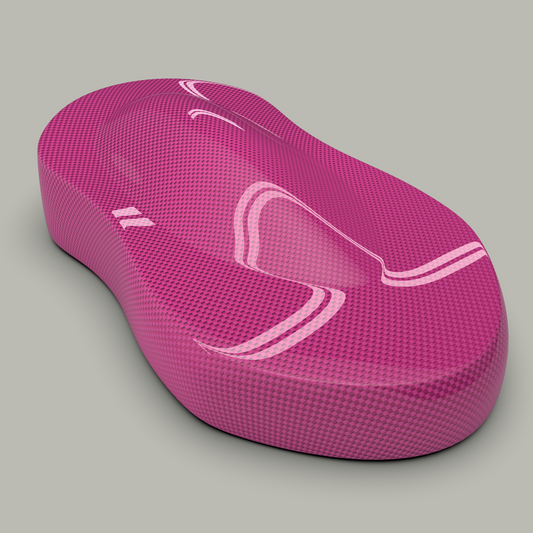

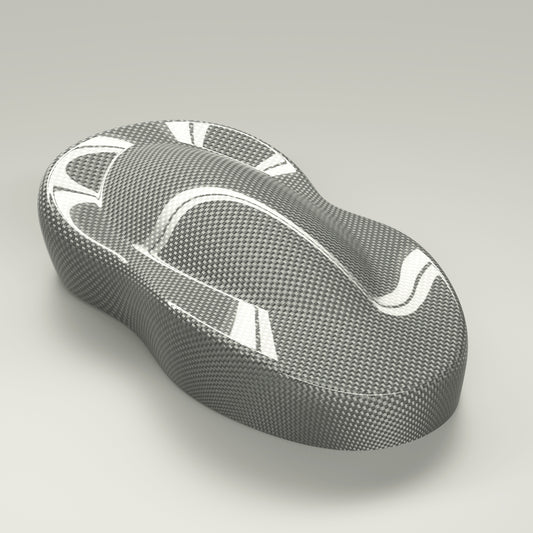

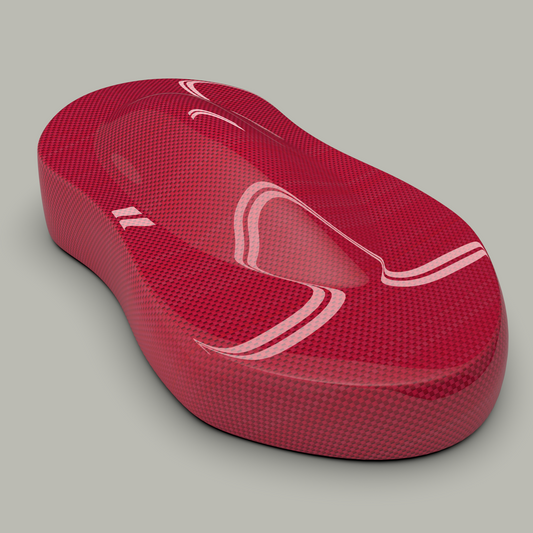

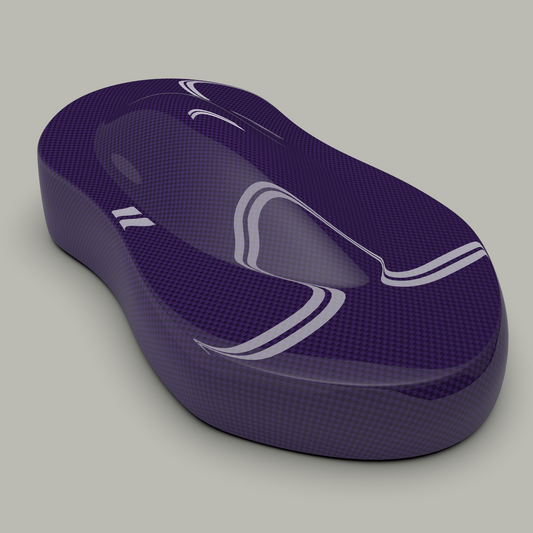

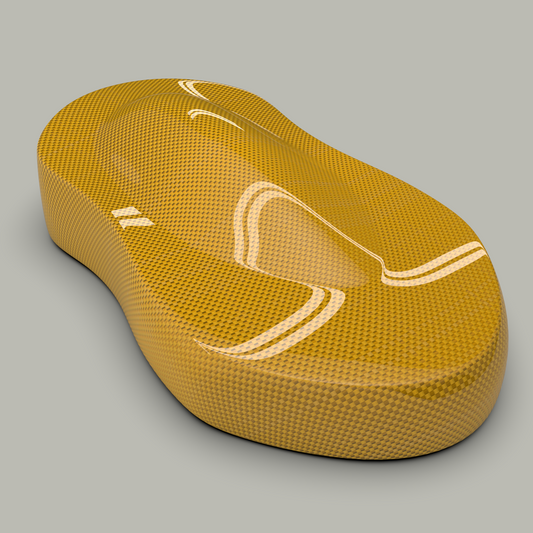

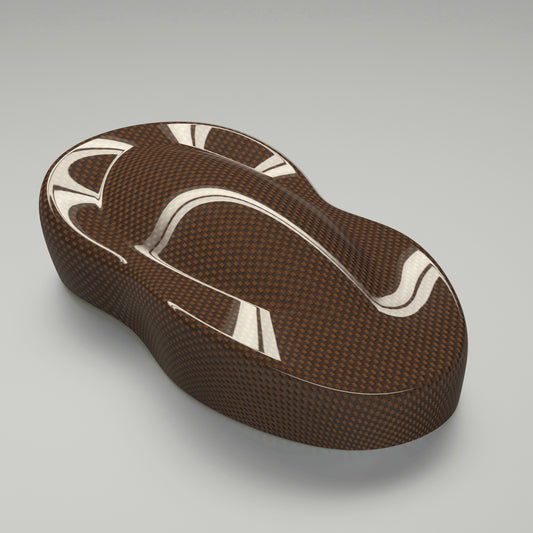

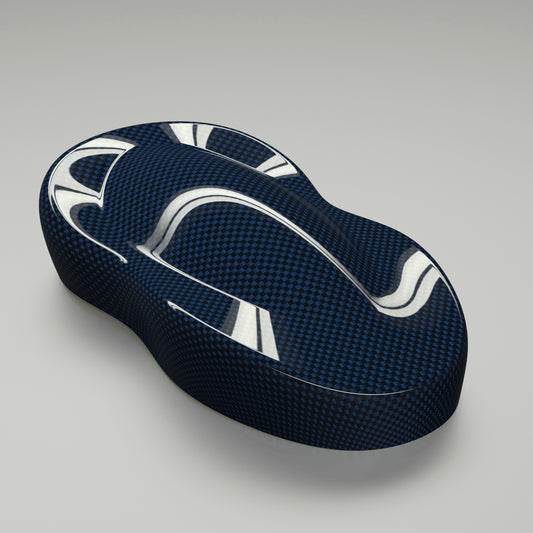

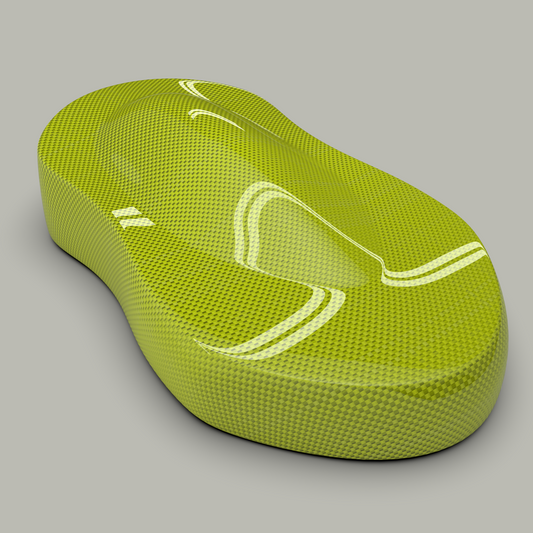

The colours shown are digital renders and not photographs of the actual material. While every effort has been made to represent the colours as accurately as possible, variations may occur due to rendering limitations. For a true representation, we recommend requesting a physical sample.
